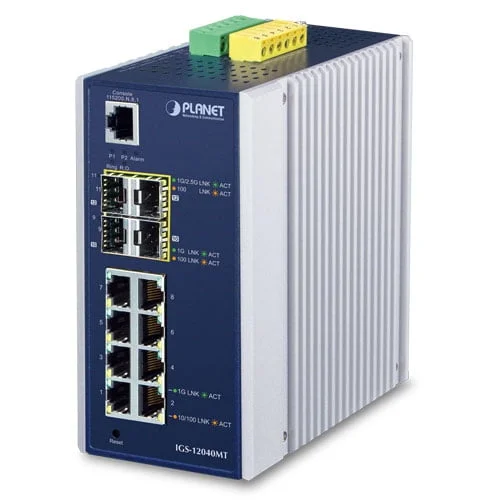

IGS-12040MT - Planet Industrial 8-Port 10/100/1000T + 2-Port 100/1G SFP + 2-Port 1G/2.5G SFP Managed Ethernet Switch

Part Number: IGS-12040MT Categories ,

The IGS-12040MT is a fully-managed Gigabit fiber switch usually designed for the industrial network. It features 8 10/100/1000BASE-T copper ports, 2 100/1000BASE-X SFP ports, 2 100/1000/2500BASE-X SFP ports and redundant power system in an IP30 rugged but compact-sized case that can be installed in any difficult environment without space limitation. It provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions and Layer 3 static routing capability.

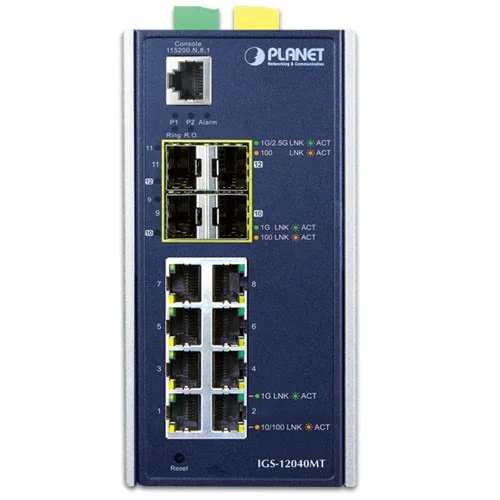

Physical Port

  •  8 10/100/1000BASE-T RJ45 copper ports
  •  2 100/1000BASE-X SFP port with SFP-type auto detection
  •  2 100/1000/2500BASE-X SFP ports
  •  One RJ45 console interface for basic management and setup



Industrial Hardened Design

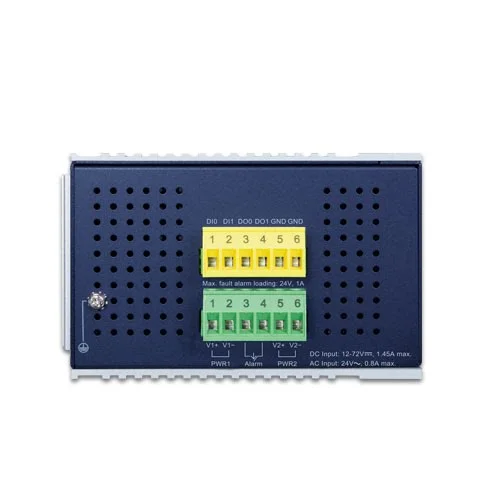

  •  Dual power input, redundant power with reverse polarity protection
    •  DC 12 to 72 input or AC 24V input
    •  Active-active redundant power failure protection
    •  Backup of catastrophic power failure on one supply
    •  Fault tolerance and resilience
  •  DIN-rail and wall-mountable designs
  •  IP30 aluminum case
  •  Supports 6000V DC Ethernet ESD protection
  •  -40 to 75 degrees C operating temperature



Industrial Protocol

  •  Modbus TCP for real-time monitoring in SCADA system
  •  IEEE 1588v2 PTP (Precision Time Protocol)



Digital Input and Digital Output

  •  2 Digital Input (DI)
  •  2 Digital Output (DO)
  •  Integrates sensors into auto alarm system
  •  Transfers alarm to IP network via email and SNMP trap
