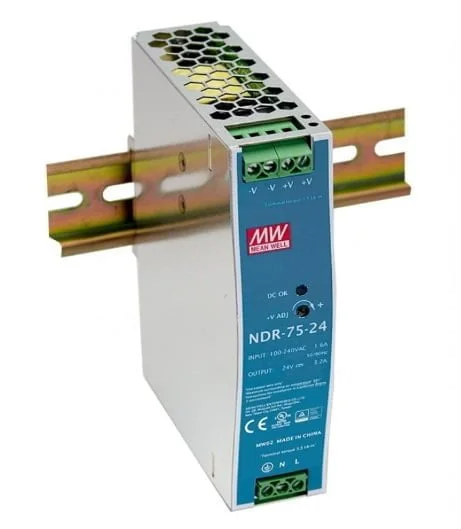

PWR-75-24 – MEANWELL Din Rail 75 Watt 24V DC Power Supply

3 in stock (can be backordered)

Part Number:PWR-75-24

Log in or Register for current pricing

MEANWELL Din Rail 75 Watt 24VDC Industrial Power Supply (NDR-75-24)

PWR-75-24 (MEAN WELL/NDR-75-24)

  • Universal AC input / full range
  • Protection features: short circuit, overload, over voltage and over temperature
  • Cooling by free air convection
  • DIN rail TS-35/7.5 or 15 installation
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2 (EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • 3 year Warranty
PWR-75-24 - MEANWELL Din Rail 75 Watt 24V DC Power Supply
Style Slimline
Input Type Single Phase
Input Voltage 90 ~ 264VAC
Input Current 0.9A / 230VAC
Output Voltage 24V
Output Current 3.2A
Rated Output Power 76.8W
Output Type Single
Output Voltage Adjustment 24 ~ 28V
Output Current Adjustment Range N/A
Current Sharing N/A
Alarm Signals N/A
Remote Functions N/A
Dimming / Control Options N/A
Control Options N/A
Prescribed Electrical Item No
SELV Yes
Efficiency 88.00%
Operating Temperature Range '-20 ~ +70ºC (Refer to "Derating Curve" in Data Sheet)
Warranty 3 Years
Approvals CE,CB,RCM
IP Rating / Environmental Protection Less than IP65
Dimensions 32*125.2*102mm (W*H*D)
Recommended for New Designs Yes
Click here to open the datasheets
