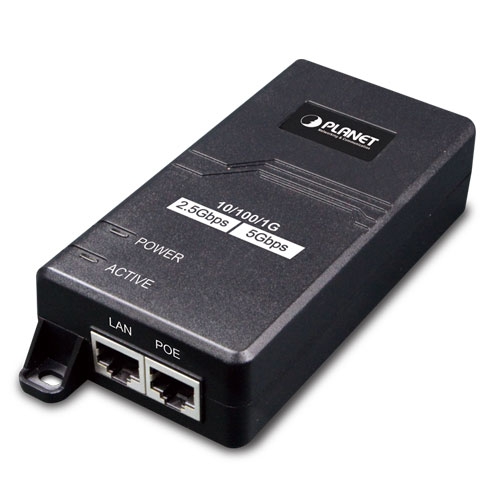

POE-165 – Single-Port Multigigabit 802.3at PoE+ Injector (30 Watts)
PLANET POE-165 is a Single-Port, 802.3at Power over Ethernet Injector with a maximum of up to 30 watts of power output over Ethernet cables. It is also equipped with two 10M/100M/1G/2.5G/5GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission.
Interface
- 2 RJ45 interfaces
- 1-port Data + Power output
- 1-port Data input
- 1 AC 100-240V input power socket
Power over Ethernet
- Power over Ethernet Mid-span PSE
- IEEE 802.3at PoE Plus compliant
- Backward compatible with IEEE 802.3af PD device
- Supports PoE Power up to 30 watts for PoE+ port
- Auto-detects PoE IEEE 802.3at/802.3af equipment and devices for preventing damage from incorrect installation
- Remote power feeding up to 100m
Hardware
- All-in-one compact size design
- Plastic case
- LED indicators for Power LED and Active LED (PoE ready-in-use)
Standard Compliance
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3bz 2.5Gbps/5GbpsBASE-T
- IEEE 802.3af Power over Ethernet (802.3at Type 1)
- IEEE 802.3at Power over Ethernet (802.3at Type 2)
- FCC Part 15 Class B, CE
| Hardware Specifications | |
|---|---|
| Interface | “Data” Input Port 1 x RJ45 STP“PoE (Data + Power)” Output Port 1 x RJ45 STPAC Input Power Socket 1 |
| LED Indicators | System: Power x 1 (Green) PoE Port: Active, PoE ready / In Use x 1 (Green) |
| Network Cable | 10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) 100BASE-TX: 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) 1000BASE-T: 2-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) 2.5Gbps/5Gbps BASE-T: 2-pair UTP Cat. 5e, 6, 7 up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m) |
| Data Rate | 10/100/1000Mbps/ 2.5Gbps/5Gbps |
| Dimensions (W x D x H) | 115 x 62.5 x 31 mm |
| Weight | 204g |
| Unit Output Voltage | DC 50-54V, 0.6A |
| Power Requirements | 100-240V AC, 50/60Hz, 0.75A |
| Power Consumption | 30 watts max. |
| Number of devices that can be powered | 1 |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus / Mid-span PSE |
| PoE Power Output | DC 50-54V/30 watts |
| PoE Power Supply Type | Mid-span |
| Power Pin Assignment | 4/5 (+), 7/8 (-) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz 2.5Gbps/5Gbps BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet (802.3at Type 1) IEEE 802.3at Power over Ethernet (802.3at Type 2) |
| Regulatory Compliance | FCC Part 15 Class B, CE |
