GS-5220-8P2T2S - Planet 8-Port 30W PoE Managed Switch with 2-Port Gigabit SFP + 2-Port TP (240W)

Part Number: GS-5220-8P2T2S Categories , , ,

The GS-5220-8P2T2S is a Layer 2+ Managed Gigabit Switch, which supports both IPv4 and IPv6 protocols and Layer 3 static routing capability, and provides 8 10/100/1000BASE-T ports featuring 30-watt 802.3at PoE+, 2 additional Gigabit copper ports and another 2 extra 100/1000BASE-X SFP fiber slots. Each of the eight Gigabit ports provides 30 watts of power, which means a total power budget of up to 240 watts can be utilized simultaneously without considering the different types of PoE applications being employed.

Available on backorder

Add to Wishlist
Add to Wishlist
  • Key Features
  • Specifications

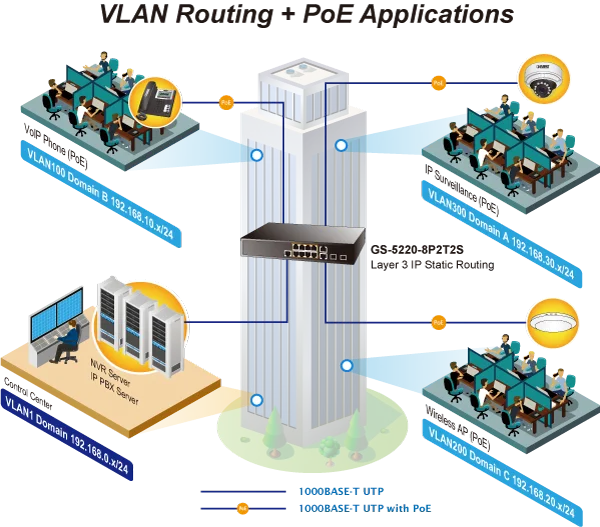

  • Applications

Physical Port

  • 10-Port 10/100/1000BASE-T RJ45 copper with 8-Port IEEE 802.3at/af Power over Ethernet Injector function
  • 2 100/1000BASE-X mini-GBIC/SFP slots
  • RJ45 console interface for basic management and setup

Power over Ethernet

  • Complies with IEEE 802.3at High Power over Ethernet end-span PSE
  • Complies with IEEE 802.3af Power over Ethernet end-span PSE
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE Power up to 30.8 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters
    PoE Management
    – Total PoE power budget control
    – Per port PoE function enable/disable
    – PoE Port Power feeding priority
    – Per PoE port power limitation
    – PD classification detection
    – PD alive check
    – PoE schedule
    – PD power recycling schedule

Layer 2 Features

  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm Control support
    – Broadcast / Multicast / Unknown unicast
  • Supports VLAN– IEEE 802.1Q tagged VLAN- Up to 255 VLANs groups, out of 4094 VLAN IDs- Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)- Private VLAN Edge (PVE)- Protocol-based VLAN- MAC-based VLAN- Voice VLAN
  • Supports Spanning Tree Protocol
    – STP, IEEE 802.1D Spanning Tree Protocol- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN- BPDU Guard
  • Supports Link Aggregation
    – 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)- Maximum 6 trunk groups, up to 8 ports per trunk group- Up to 16Gbps bandwidth (full duplex mode)
  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops

Layer 3 IP Routing Features

  • Supports maximum 32 static routes and route summarization

Quality of Service

  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
    – IEEE 802.1p CoS- TOS/DSCP/IP Precedence of IPv4/IPv6 packets- IP TCP/UDP port number- Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic-policing policies on the switch port
  • DSCP remarking

Multicast

  • Supports IGMP Snooping v1, v2 and v3
  • Supports MLD Snooping v1 and v2
  • Querier mode support
  • IGMP Snooping port filtering
  • MLD Snooping port filtering
  • Multicast VLAN Registration (MVR) support

Security

  • Authentication
    – IEEE 802.1x Port-based/MAC-based network access authentication- Built-in RADIUS client to co-operate with the RADIUS servers- TACACS+ login users access authentication- RADIUS/TACACS+ users access authentication
  • Access Control List
    – IP-based Access Control List (ACL)- MAC-based Access Control List
  • Source MAC/IP address binding
  • DHCP Snooping to filter un-trusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • Auto DoS rule to defend DoS attack
  • IP address access management to prevent unauthorized intruder

Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
    – Console/Telnet Command Line Interface- Web switch management- SNMP v1, v2c, and v3 switch management- SSH/SSL secure access
  • IPv6 IP Address/NTP/DNS management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
    – Firmware upload/download via HTTP/TFTP- Reset button for system reboot or reset to factory default- Dual Images
  • DHCP Relay
  • DHCP Option82
  • User Privilege levels control
  • NTP (Network Time Protocol)
  • Link Layer Discovery Protocol (LLDP) and LLDP-MED
  • Network Diagnostic
    – ICMPv6/ICMPv4 Remote Ping- Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
  • SMTP/Syslog remote alarm
  • Four RMON groups (history, statistics, alarms and events)
  • SNMP trap for interface Linkup and Linkdown notification
  • System Log
  • PLANET Smart Discovery Utility for deployment management
Hardware Specifications
Copper Ports 10 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 2 x 100/1000BASE-X SFP interfaces with Port-11 to Port-12 Supports 100/1000Mbps dual mode and DDM
PoE Injector Port 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8
Console 1 x RJ45 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 24Gbps / non-blocking
Throughput 17.76Mpps@64Bytes
Address Table 8K entries, automatic source address learning and aging
Shared Data Buffer 1392KB
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 9KB
Reset Button < 5 sec: System reboot > 5 sec: Factory default
LED System: Fan Alert (Green), SYS (Green), PWR (Green)
10/100/1000T RJ45 Interfaces (Port 1 to Port 8):
10/100/1000Mbps LNK/ACT (Green)
PoE-in-Use (Orange)
10/100/1000T RJ45 Interfaces (Port 9 to Port 10):
LNK/ACT (Green)
1000Mbps (Orange)
100/1000Mbps SFP Combo Interfaces (Port 11 to Port 12):
LNK/ACT (Green)
1000Mbps (Orange)
Power Requirements 100~240V AC, 50/60Hz
Power Consumption (Full Loading) 320 watts/1091.9 BTU (max.)
ESD Protection 6KV DC
Dimensions (W x D x H) 330 x 200 x 43.5 mm, 1U height
Weight 2kg
Power over Ethernet
PoE Standard IEEE 802.3af/802.3at PoE/PSE
PoE Power Supply Type End-span
PoE Power Output Per port 54V DC, max. 30.8 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 240 watts (max.) @ 25 degrees C
200 watts (max.) @ 50 degrees C
PoE Ability PD @ 7 watts: 8 units
PD @ 15.4 watts: 8 units
PD @ 30.8 watts: 8 units
Layer2 Management Functions
Basic Management Interfaces Console, Telnet, Web browser, SNMP v1, v2c
Secure Management Interfaces SSH, SSL, SNMP v3
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable/enable
Port Status Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port Mirroring TX/RX/Both
Many-to-1 monitor
VLAN 802.1Q tagged based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4094 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/Static Trunk
Supports 6 trunk groups with 8 ports per trunk
QoS Traffic classification based, strict priority and WRR 8-level priority for switching
– Port number
– 802.1p priority
– 802.1Q VLAN tag
– DSCP/TOS field in IP packet
IGMP Snooping IGMP (v1/v2/v3) Snooping, up to 255 multicast groups
IGMP Querier mode support
MLD Snooping MLD (v1/v2) Snooping, up to 255 multicast groups
MLD Querier mode support
Access Control List IP-based ACL/MAC-based ACL
Up to 256 entries
Bandwidth Control Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
SNMP MIBs RFC 1213 MIB-II
RFC 2863 IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2737 Entity MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB
Layer 3 Functions
IP Interfaces Max. 8 VLAN interfaces
Routing Table Max. 32 routing entries
Routing Protocols IPv4 software static routing IPv6 software static routing
Standards Conformance
Regulatory Compliance FCC Part 15 Class B, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
Environments
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
