IPOE-176S – Industrial Single-Port 10Gbps 802.3bt PoE++ Splitter

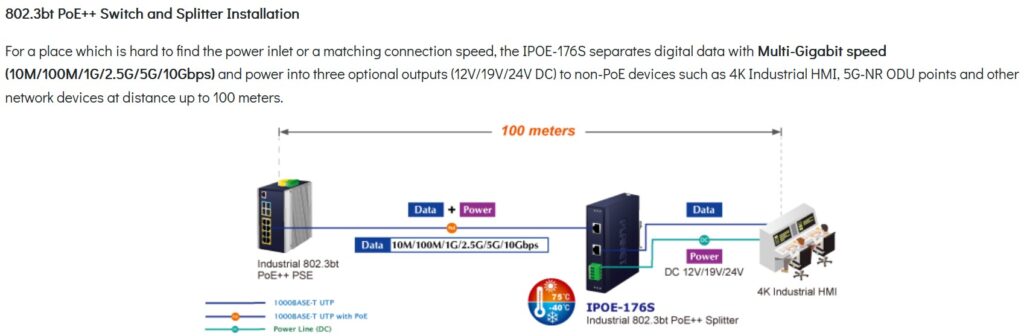

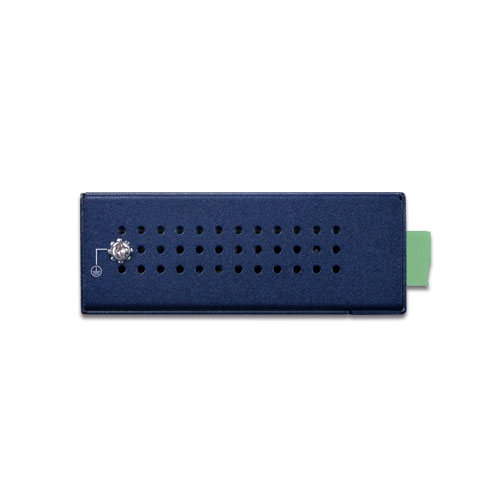

PLANET IPOE-176S is an Industrial-grade 802.3bt Power over Ethernet Splitter which delivers the Ethernet digital data and PoE power from an 802.3bt PoE++ type-4 PSE (power source equipment) over an UTP cable. It comes with a selectable 12V/19V/24V DC DIP switch, enabling to deliver a maximum of 70-watt power output to a non-PoE device. It is also equipped with two 10M/100M/1G/2.5G/5G/10GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission. To fulfill the growing industrial applications, the IPOE-176S is designed to work under the operating temperature range from -40 to 75 degrees C. The IPOE-176S is an ideal solution to transfer power to a traditional network device with high power demand directly without the need to install additional power outlets and electrical cabling in the industrial environment.

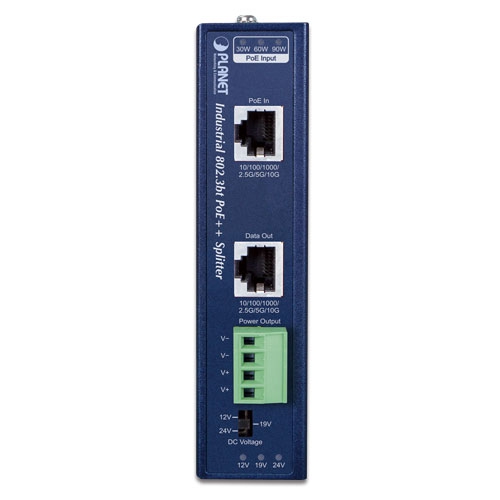

| Hardware Specifications | |
|---|---|
| Interface | PoE Input Port： 1 10M/100M/1G/2.5G/5G/10G BASE-T RJ45 Data Output Port： 1 10M/100M/1G/2.5G/5G/10G BASE -T RJ45 DC Out Plug Connector： 1 removable 4-pin terminal block DIP Switch： 12V/19V/24V DC output |
| LED Indicators | PoE Input: 30W (Green), 60W (Green), 90W (Green) DC Voltage: 12V (Green), 19V (Green), 24V (Green) |
| Data Rate | 10M/100M/1G/2.5G/5G/10Gbps |
| Dimensions (W x D x H) | 32 x 87.8 x 135 mm |
| Weight | 433g |
| Installation | DIN-rail/wall mountable |
| ESD Protection | 4KV |
| EFT Protection | 4KV |
| Enclosure | IP30 metal case |
| Power Requirements | 4-pair 802.3at PoE+ and 802.3bt PoE++ PoE DC 48 ~ 54V |
| Power Consumption | System on with PoE input 12V DC: 5.5 watts 19V DC: 6.8 watts 24V DC: 7.6 watts Full loading with maximum 12V DC: 98.3 watts 19V DC: 98.5 watts 24V DC: 97.9 watts |
| Power Output | 802.3 bt type 4 PoE++ input 12V DC, 6.8A (max.) 19V DC, 4.3A (max.) 24V DC, 3.3A (max.) |
| Network Cable | Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1G/2.5G: 4-pair UTP Cat 5e/Cat 6/Cat 6A/ Cat 7 5G: 4-pair UTP Cat 6/Cat 6A/Cat 7 10G:4-pair UTP Cat 6A/Cat 7 |
| Power over Ethernet | |
| PoE Standard | 802.3 bt PoE++ 4-pair 802.3at PoE+ |
| Power Output | DC 12V/19V/24V by DIP switch control |
| PoE Power Supply Type | End-span + Mid-span End-span Mid-span |
| Power Pin Assignment | 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-) |
| Remote Power Distance | 1G/2.5G speed: 100M (max.) 5G/10G speed: 80M (max.)(cat6A/cat7) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz 2.5G/5G/10GBASE-T IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet (Type 4) |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Environment | |
| Operating Temperature | -40~ 75 degrees C |
| Storage Temperature | -40~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
