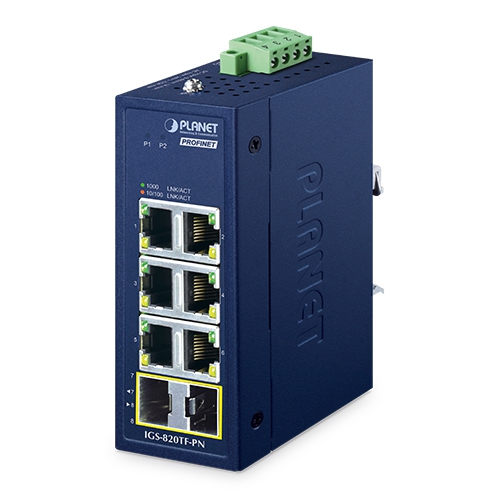

IGS-820TF-PN – Planet Compact Industrial 6-Port 10/100/1000T + 2-Port 100/1000X SFP PROFINET Switch
PLANET IGS-820TF-PN Compact Industrial 6-Port 10/100/1000T and 2-Port 1000X SFP PROFINET Switch is designed for industrial use, featuring 6 auto-negotiation 10/100/1000BASE-T RJ45 ports and 2 1000BASE-X SFP interfaces. It supports backward compatibility with 100BASE-FX transceivers, is housed in an IP30-rated rugged but compact case, and is equipped with a wide-ranging redundant power system (9~48V DC or 24V AC). The IGS-820TF-PN is capable of operating in harsh environments with a temperature range from -40 to 75 degrees C.

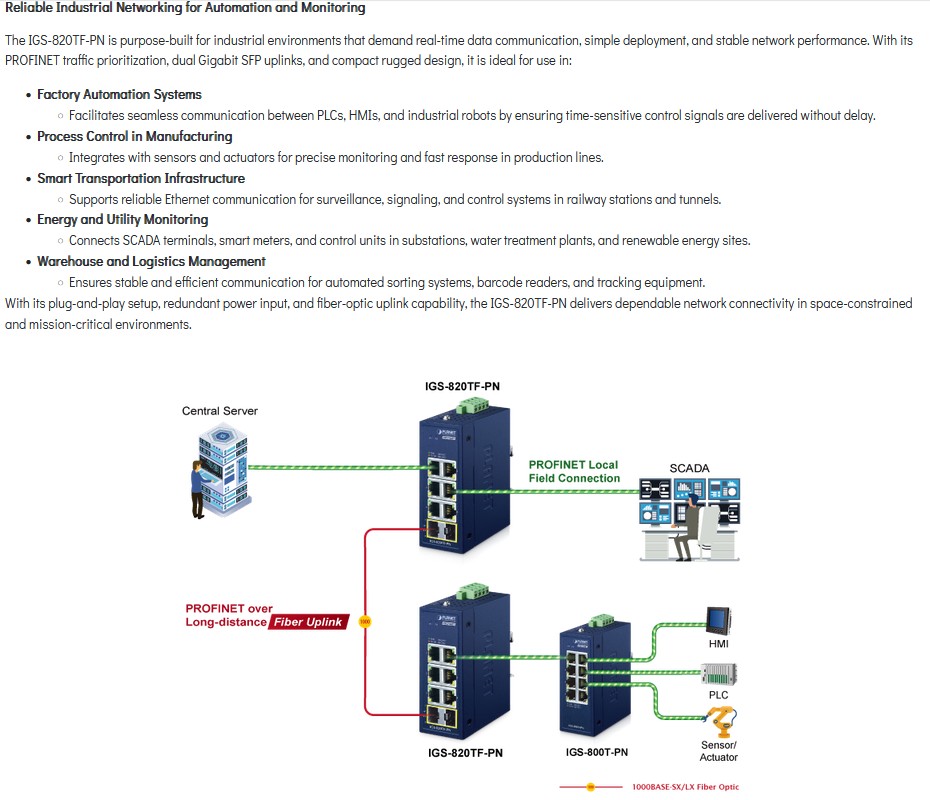

Physical Port
- 6-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
- 2-port 100/1000BASE-X SFP
Layer 2 Features
- Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, and IEEE 802.3z Ethernet standards.
- Supports auto-negotiation for 10/100Mbps half/full duplex and 1000Mbps full duplex modes.
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex).
- High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth.
- Switching fabric: 16Gbps
- Integrated address look-up engine, supporting 4K absolute MAC addresses
- Supports jumbo frames up tp 9K bytes
- Automatic MAC address learning and aging
- Supports CSMA/CD Protocol
- Compliant with PROFINET Conformance Class A
- Supports PROFINET PTCP filter for reliable communication on PROFINET network
- Supports PROFINET Traffic Pass-through with QoS
Industrial Case and Installation
- IP30-rated compact metal enclosure
- Supports both DIN-rail and wall-mount installation
- 9~48V DC redundant power input with reverse polarity protection; includes removable terminal block for master and slave power connections
- Supports 24V AC power input
- Supports 6000 VDC Ethernet ESD protection
- Operating temperature range: -40 to 75°C
- Designed to withstand free fall, shock, and vibration in industrial environments
| Hardware Specifications | |
|---|---|
| Copper Ports | 6 x 10/100/1000BASE-T RJ45 TP auto-MDI/MDI-X, auto negotiation ports (Ports 1 to 6) |
| SFP Slots | 2 x 1000BASE-X SFP interfaces (Ports 7 to 8) Backward compatible with 100BASE-FX transceiver |
| Connector | Removable 4-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for Power 2 |
| ESD Protection | 6KV |
| EFT Protection | 6KV |
| Power Requirements | 9~48V DC redundant power with polarity reverse protection function, 24V AC power support |
| Power Consumption / Dissipation | System on: Max. 1.44 watts/4.9BTU Ethernet Full Loading: Max. 4.8 watts/16.4BTU |
| Installation | DIN-rail kit and wall-mount ear |
| Enclosure | IP30 metal case |
| Dimensions (W x D x H) | 41 x 70 x 115 mm |
| Weight | 345g |
| LED | 2 x LED for system and power: Green: Power 1 Green: Power 2 2 x LED for each port: 10/100/1000T RJ45 Ports: Green: 1000Mbps LNK/ACT Amber:10/100Mbps LNK/ACT 100/1000BASE-X SFP Interfaces: Green: 1000Mbps LNK/ACT Amber: 100Mbps LNK/ACT |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 4K entries |
| Buffer Memory | 4M bits on-chip buffer memory |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 16Gbps |
| Throughput (packet per second) | 11.9Mpps@64bytes |
| Jumbo Frame | 9Kbytes |
| Network Cables | 10/100/1000BASE-T Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters) EIA/TIA-568 100-ohm STP (max. 100 meters) |
| PROFINET Support | Conformance Class A (CC-A), PTCP filter, QoS prioritization |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service PROFINET protocol |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~90%, Storage: 5~90% (non-condensing) |
