IGS-801M Planet 8-Port Gigabit Managed Industrial Ethernet Switch
Part Number:
IGS-801M
Categories Industrial, Network Switches, Network Switches, Switches
The IGS-801M provides 8-Port 10/100/1000BASE-T copper interfaces delivered in an IP30 rugged strong case with redundant power system. It also has support for 16Gbps switch fabric to handle extremely large amounts of video, voice and important data in a secure topology, the IGS-801M provides user-friendly but advanced IPv6/IPv4 management interfaces and abundant L2/L4 switching functions. Able to operate from temperatures ranging from -40 to 75 degrees C, the IGS-801M can be placed in almost any difficult environment.
- Key Features
- Specifications

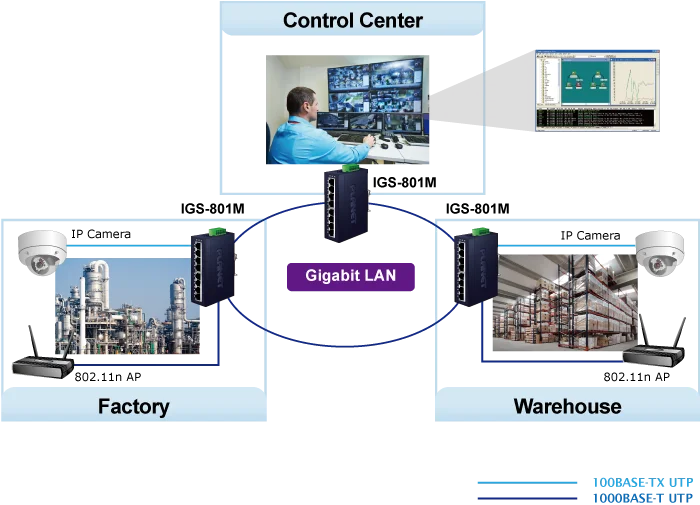

- Applications
Physical Port
- 8-Port 10/100/1000BASE-T RJ45 copper
Industrial Case/Installation
- IP30 metal case protection
- DIN-rail and wall mount design
- Redundant power design
– 12 to 48V DC, redundant power with polarity reverse protect function
– AC 24V power adapter acceptable - Supports EFT 6000VDC protection for power line
- Supports 6000VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
Layer 2 Features
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- Supports VLAN– IEEE 802.1Q tagged VLAN- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Protocol VLAN- Voice VLAN- Private VLAN- Management VLAN- GVRP
- Supports Spanning Tree Protocol– STP (Spanning Tree Protocol)- RSTP (Rapid Spanning Tree Protocol)- MSTP (Multiple Spanning Tree Protocol)- STP BPDU Guard, BPDU filtering and BPDU forwarding
- Supports Link Aggregation– IEEE 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)
- Provides port mirror (many-to-1)
- Loop protection to avoid broadcast loops
Quality of Service
- Ingress and egress rate limit per port bandwidth control
- Storm control support
– Broadcast/Unknown unicast/Unknown multicast - Traffic classification
– IEEE 802.1p CoS
– TOS/DSCP/IP precedence of IPv4/IPv6 packets - Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
- Supports IPv4 IGMP snooping v2 and v3
- Supports IPv6 MLD snooping v1, v2
- IGMP querier mode support
- IGMP snooping port filtering
- MLD snooping port filtering
Security
- Authentication
– IEEE 802.1X port-based network access authentication
– Built-in RADIUS client to co-operate with the RADIUS servers
– RADIUS/TACACS+ login user access authentication - Access control list
– IPv4/IPv6 IP-based ACL- MAC-based ACL - MAC security
– Static MAC
– MAC filtering - Port security for source MAC address entries filtering
- DHCP snooping to filter distrusted DHCP messages
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
- IP source guard prevents IP spoofing attacks
- DoS attack prevention
- SSH/SSL
Management
- IPv4 and IPv6 dual stack management
- Switch management interface
– Web switch management
– Telnet command line interface
– SNMP v1, v2c and v3
– SSH and SSL secure access - User privilege levels control
- Built-in Trivial File Transfer Protocol (TFTP) client
- BOOTP and DHCP for IP address assignment
- System maintenance
– Firmware upload/download via HTTP/TFTP
– Configuration upload/download through web interface
– Dual images- Hardware reset button for system reboot or reset to factory default - SNTP Network Time Protocol
- Cable diagnostics
- Link Layer Discovery Protocol (LLDP) and LLDP-MED
- SNMP trap for interface link up and link down notification
- Event message logging to remote Syslog server
- Four RMON groups (history, statistics, alarms and events)
- PLANET smart discovery utility
Hardware Specifications | |
---|---|
Hardware Version | 2 |
Copper Ports | 8 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port |
Switch Architecture | Store-and-Forward |
Switch Fabric | 16Gbps/non-blocking |
Switch Throughput@64Bytes | 11.9Mpps |
Address Table | 8K entries |
Shared Data Buffer | 4.1 megabits |
Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
Jumbo Frame | 10K bytes |
Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
ESD Protection | 6KV DC |
Enclosure | IP30 metal case |
Installation | DIN rail kit and wall mount kit |

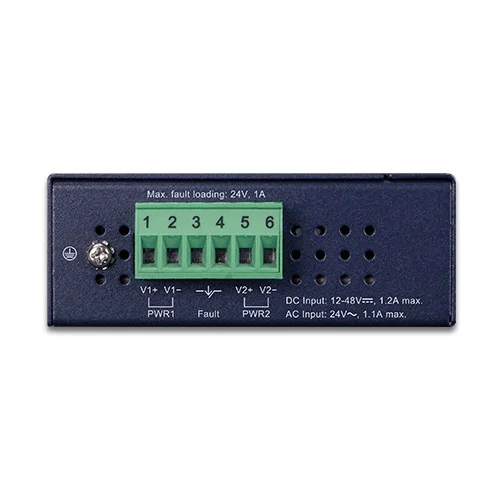

Connector | Removable 6-pin terminal block for power input Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ DC 24V |
LED | System: Power 1, Power 2, Fault Alarm Ports: 10/100 Link/Act 1000 Link/Act |
Dimensions (W x D x H) | 135 x 87 x 32 mm, 1U height |
Weight | 472g |
Power Requirements | DC 12 to 48V AC 24V |
Power Consumption/ Dissipation | 4.5 watts/15BTU (System on) 10 watts/34BTU (Full loading) |
Layer 2 Functions | |
Port Mirroring | TX/RX/both Many-to-1 monitor |
VLAN | 802.1Q tagged-based VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP |
Link Aggregation | IEEE 802.3ad LACP and static trunk Supports 8 trunk groups with 8 ports per trunk |
Spanning Tree Protocol | STP, IEEE 802.1D Spanning Tree Protocol RSTP, IEEE 802.1w Rapid Spanning Tree Protocol MSTP, IEEE 802.1s Multiple Spanning Tree Protocol |
IGMP Snooping | IGMP (v2/v3) snooping IGMP querier Up to 256 multicast groups |
MLD Snooping | MLD (v1/v2) snooping, up to 256 multicast groups |
Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL |
QoS | 8 mapping ID to 8 level priority queues – Port number – 802.1p priority – 802.1Q VLAN tag – DSCP field in IP packet Traffic classification based, strict priority and WRR |
Security | IEEE 802.1X port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication IP-MAC port binding MAC filtering Static MAC address DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard |
Management Functions | |
Basic Management Interfaces | Web browser/Telnet/SNMP v1, v2c Firmware upgrade by HTTP/TFTP protocol through Ethernet network Remote/Local Syslog System log LLDP protocol SNTP |
Secure Management Interfaces | SSH, SSL, SNMP v3 |
SNMP MIBs | RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Stability Testing | IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 |
Environment | |
Operating | Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Storage | Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
