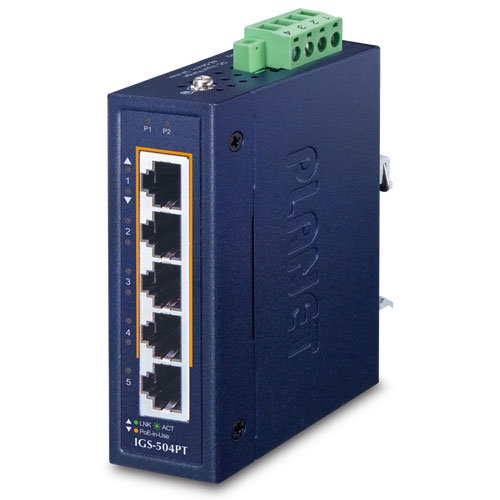

IGS-504PT – Planet Compact Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
The IGS-504PT is the smallest industrial-grade 4-Port PoE+ Switch in PLANET industrial PoE product line and is specially designed to be installed in a narrow environment. It provides up to 120-watt 802.3at PoE+ output capability and wire-speed Gigabit performance even in the harsh industrial environment. With four 10/100/1000BASE-T ports featuring IEEE 802.3at PoE+ and one extra 10/100/1000BASE-T RJ45 copper interface for uplink connection.
Interface

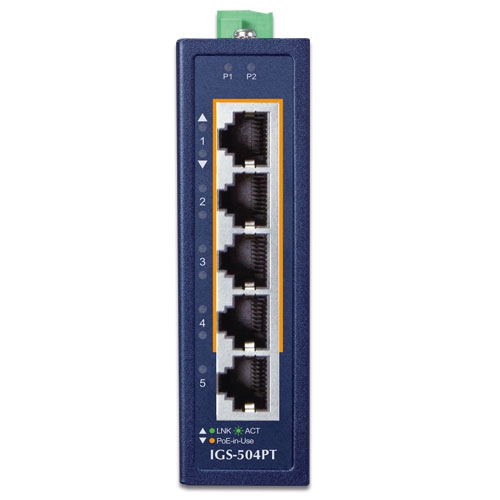

- 5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
Power over Ethernet
- Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 4 ports of IEEE 802.3af/at devices powered
- Up to 120-watt PoE budget
- Supports PoE power up to 30 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
Layer 2 Switching
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 2K MAC address table size
- 9K jumbo frame
- IEEE 802.1Q VLAN transparency
- Automatic address learning and address aging
Industrial Case and Installation
- IP30 metal case
- DIN-rail, wall-mount or side wall-mount design

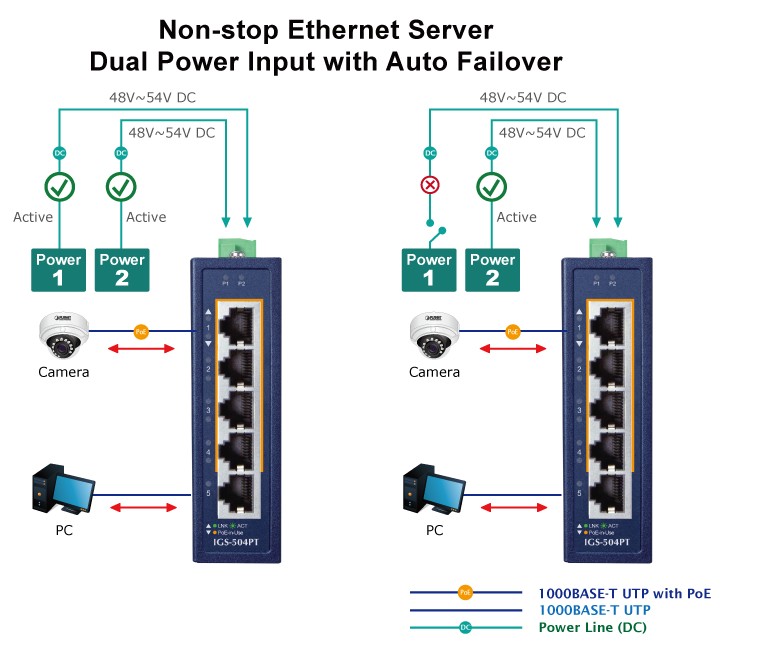

- 48~54V DC redundant power with reverse polarity protection
- Supports 6KV DC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
| Hardware Specifications | |
|---|---|
| Copper Ports | 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| PoE Injector Ports | 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
| PoE Budget | 120W maximum@75 degrees C |

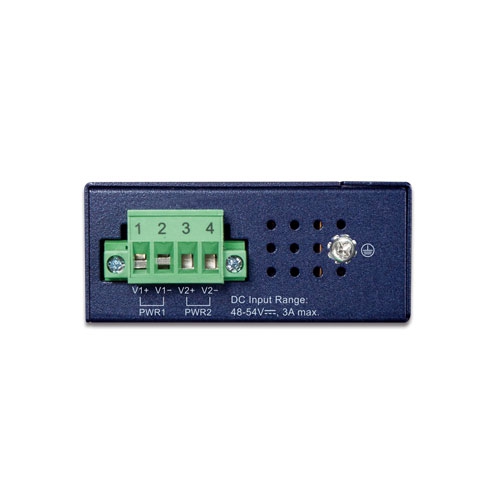

| Connector | Removable 4-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for Power 2 |
| Power Requirements | 48~54V DC, 3A (max.) Redundant power with reverse polarity protection |
| Power Consumption | DC 48V: Max. 0.48 watts/1.63BTU (System) Max. 62.88 watts/214.5BTU ( Full Loading) DC 54V: Max. 0.54 watts/1.84BTU (System) Max. 123.12 watts/420BTU ( Full Loading) |
| Dimensions (W x D x H) | 30 x 70 x 104 mm |
| Weight | 260g |
| Enclosure | IP30 metal case |
| Installation | DIN-rail kit and wall-mount kit |
| ESD Protection | 6KV |
| Switch Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 10Gbps |
| Throughput (packet per second) | 7.4Mpps@64bytes |
| Address Table | 2K entries |
| Jumbo Frame | 9Kbytes |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE Backward compatible with IEEE 802.3af Power over Ethernet/PSE |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2 (+), 3/6 (-) |
| PoE Power Output | Per port 48-54V DC Max. 30 watts@54V DC Max. 15 watts@48V DC |
| PoE Power Budget | 120 watts |
| Max. Number of Class 4 PDs | 4 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3at Power over Ethernet Plus PSE IEEE 802.3af Power over Ethernet Plus IEEE 802.1p Class of Service |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
