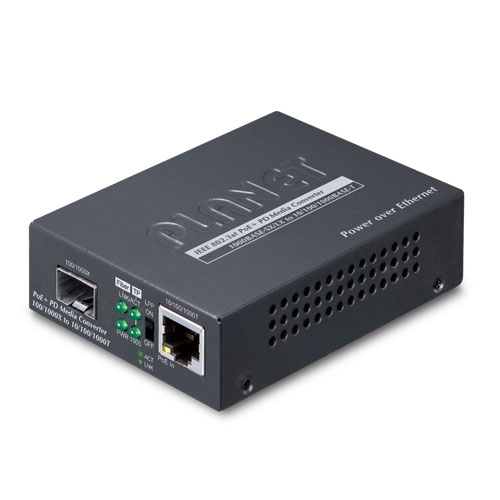

GT-805A-PD – Planet 802.3at PoE+ PD 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
In line with the energy-saving trend worldwide, PLANET has delivered a new-generation Gigabit Networking PoE PD Media Converter, GT-805A-PD. The GT-805A-PD incorporates the following advanced concepts:
- IEEE 802.3af/at/bt 48V~54V DC in-line power input
- Easy to install and use
- Compact-sized design
- Simple troubleshooting
PLANET GT-805A-PD is an 802.3at PoE+ PD 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter equipped with a convenient and cost-effective 802.3af/at/bt PoE power injection solution. It is quite different from the earlier version of PLANET media converter family that needs to obtain power from DC power adapter; it can power on via various IEEE 802.3at/bt PoE PSE equipment.
Note: SFP Module sold separately
| Hardware Specifications | |
|---|---|
| Copper Port | 10/100/1000BASE-T Ethernet TP RJ45 port (auto-MDI/MDI-X) twisted pair |
| Fiber Port | 100/1000BASE-X |
| Fiber Port Type (connector) | SFP (LC) |
| Copper Maximum Distance | 100m |
| Fiber Maximum Distance | Vary by SFP Transceiver |

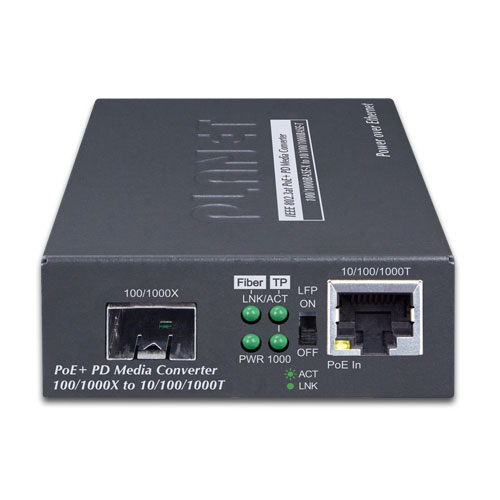

| LED Indicator | System: Power x 1 (Green) TP LINK/ACT, 1000 LINK/ACT (Green). PoE In (Amber) Fiber LINK/ACT (Green) |
| DIP Switch | LFP function (Disable / Enable) setting |
| Power Consumption | DC 48V PoE In: 3.1 watts/10.5BTU DC 54V PoE In: 3.2watts/10.9BTU |

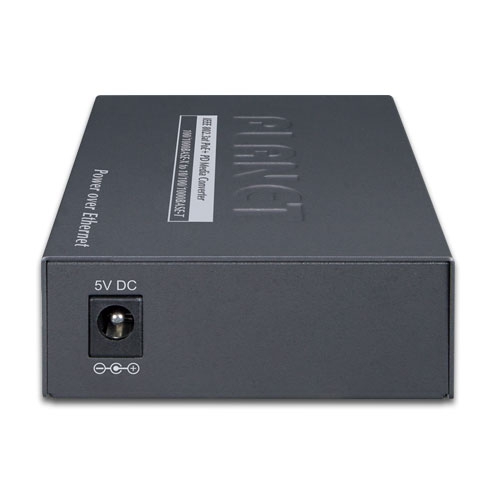

| Power Requirements | IEEE 802.3af/at/bt PoE 48V-54V DC in-line power or optional DC 5V/2A external power adapter(Not included in standard package) |
| Dimensions (W x D x H) | 94 x 70.3 x 26.2 mm |
| Weight | 186g |
| Converter Specifications | |
| Speed | Twisted-pair: 10/20Mbps for half/full duplex 100/200Mbps for half/full duplex 2000Mbps for full duplex Fiber optic: 200Mbps for full duplex 2000Mbps for full duplex |
| Network Cables | Twisted-pair: 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m 100BASE-TX: 2-pair UTP Cat. 5, up to 100m 1000BASE-T: 4-pair STP Cat 5 up to 100m Fiber-optic Cable |
| Jumbo Packet Size | 9K |
| Standard Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3x full-duplex and half-duplex back pressure flow control to eliminate packet loss IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet Plus Plus (Type 3) IEEE 802.3bt 4-pair Power over Ethernet Plus Plus (Type 4) |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Environment | |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, relative humidity, non-condensing |
