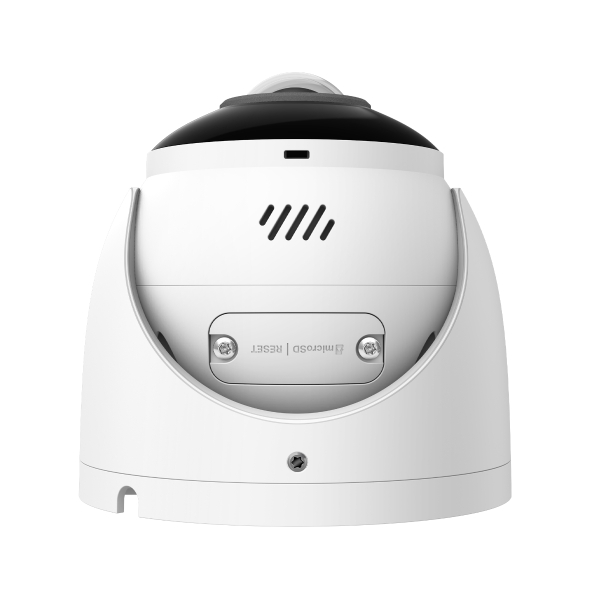

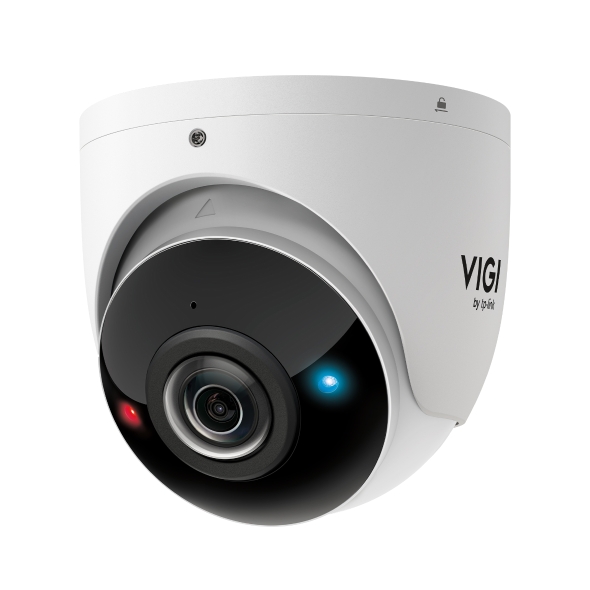

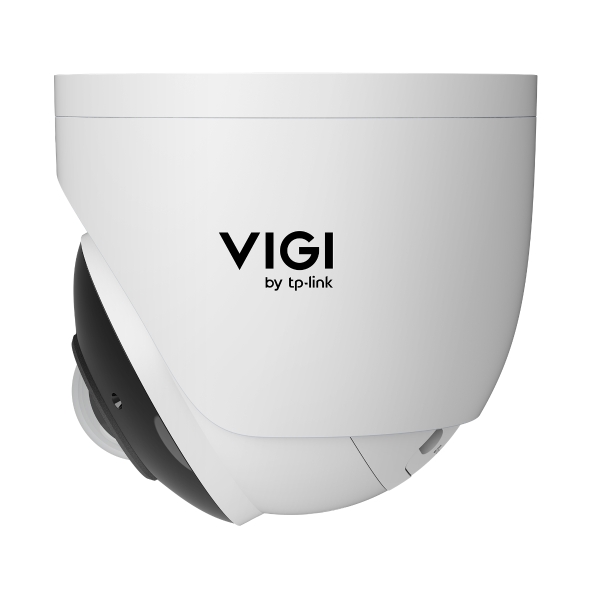

TP LINK InSight S485PI – VIGI 8MP IR Panoramic Turret Network Camera
TP Link VIGI 8MP Panoramic Turret Camera; 1/2.7“ Sensor; F2.0, 1.65mm; Horizontal FoV 180°; 20m IR, Red/Blue Strobe light; 120dB True WDR; IR Range: 20m, Built-in Mic&Speaker, Built-in Micro-SD Card Slot; IP67, IK10, 12VDC/PoE
- 180° Panorama View with Huge Vision
- 4K (8MP) Ultra HD and IR Range Up to 65.62 ft (20 m)*1
- Red-Blue Warning Lights with Stronger Deterrence
- People & Vehicle Analytics*2
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP67 Weatherproof and IK10 Vandal Proof
- H.265+ Compression Technology
| CAMERA | |
| Image Sensor | 1/2.7“ Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 1.65 mm |
| Aperture | F2.0 |
| FOV | 1.65mm: • Horizontal FOV: 180° • Vertical FOV: 86° • Diagonal FOV: 180° |
| Lens Mount | M12 |
| DORI Distance | 1.65mm • Detect: 144.36 ft (44 m) • Observe: 60.15 ft (18.33 m) • Recognize: 28.87 ft (8.8 m) • Identify: 14.44 ft (4.4 m) |
| ANGLE ADJUSTMENT (MANUAL) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| ILLUMINATOR | |
| IR LED | Quantity: 4 Range: 65.62 ft (20 m) Wavelength: 850 nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 3840×2160 |
| Main Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 3840×2160,2560×1440,2304×1296,2048×1280,1920×1080,1280x720Note: • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 848×480,704×576, 640×480, 640×360,352×288, 320×240• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 8 Mbps Sub-Stream: 64 Kbps to 1024 Kbps |
| IMAGE | |
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 4 Region |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Built-in Microphone Audio In Interface |
| Audio Output | Built-in Speaker Audio Out Interface |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event | • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection |
| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login) • Alarm Input Device |
| Alarm Linkage | • Memory Card Video Recording • Upload to FTP Server • Alarm Output Device • Push Notifications • Send to Alarm Server • Active Defence-Sound Alarm • Active Defence-Light Alarm • Email Alarm |
| DEEP LEARNING FUNCTION | |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
| INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1 Alarm In, 1 Alarm Out Red-Blue Warning Lights |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*5 |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | 1 Audio In, 1 Audio Out |
| GENERAL | |
| Operating Temperature | -30 to 60 °C |
| Storage Temperature | -40 °C to 60 °C |
| Operating Humidity | 95% or Less (Non-condensing) |
| Storage Humidity | 95% or Less (Non-condensing) |
| Package Content | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Material | Metal |
| Net Weight | 0.76 Kg |
| Power Supply | • 12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug • PoE: 802.3at, class 4, Max. 21 W |
| Protection | IP67 Waterproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | 4.4 × 4.4 × 4.3 in (112.3 × 112.3 × 110.2 mm) |
| Certifications | CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10 |
