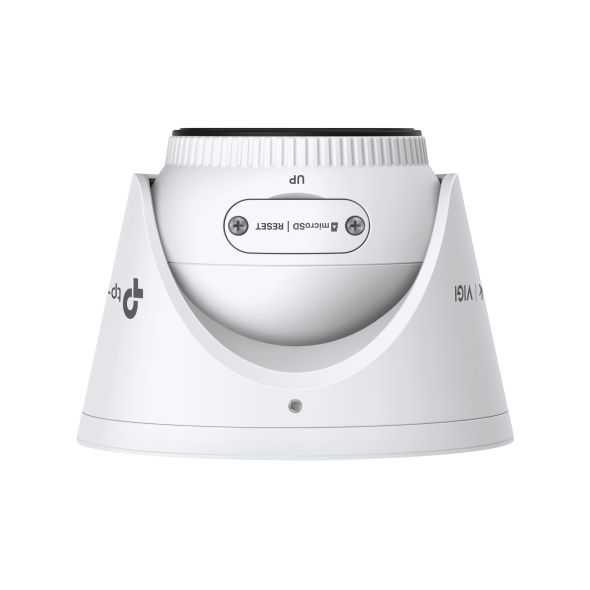

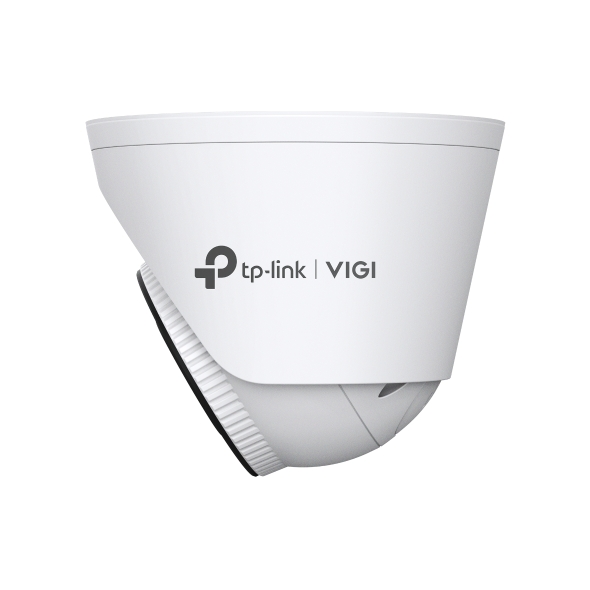

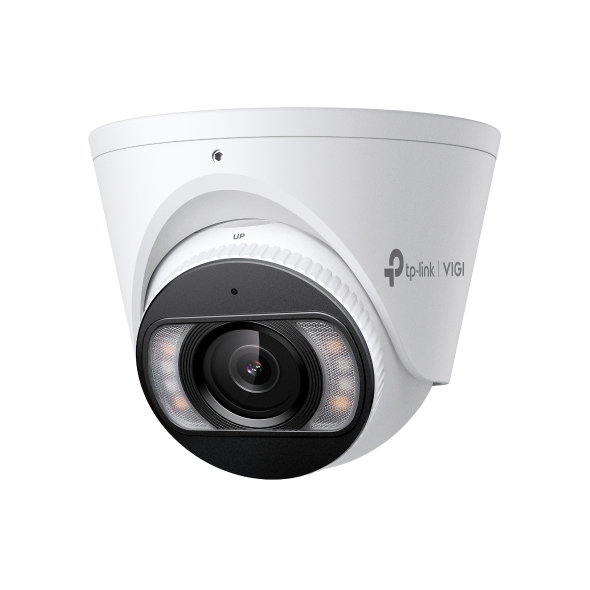

TP LINK InSight S485 – VIGI 8MP Full-Color Turret Network Camera
TP Link – Vigi 8MP Turret Full-Color, 1/2.7“ Sensor, F1.6, 2.8 mm Lens, AI Anayltics, 120dB True WDR, IR/White Light Range: 30m; Mic&Speaker, Micro-SD Card Slot, IP67, 12VDC/PoE
- 4K (8MP) Ultra HD and 24h Full-Color
- People & Vehicle Analytics§
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
- 12V DC/PoE
| CAMERA | |
| mage Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8/4 mm |
| Aperture | F1.6 |
| FOV | • 2.8 mm: Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°• 4 mm: Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | • 2.8 mm Detect: 85 m (278 ft) Observe: 35 m (116 ft) Recognize: 17 m (56 ft) Identify: 8 m (28 ft)• 4 mm Detect: 107 m (350 ft) Observe: 44 m (146 ft) Recognize: 21 m (70 ft) Identify: 11 m (35 ft) |
| ANGLE ADJUSTMENT (MANUAL) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| ILLUMINATOR | |
| IR LED | Quantity: 4 Range: 30m Wavelength: 850nm |
| White LED | Quantity: 4 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 3840 X 2160 |
| Main Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps• Resolution: 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Sub-Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps• Resolution: 848×480, 704×576, 640×480, 640×360, 352×288, 320×240• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 8 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| IMAGE | |
| mage Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported. |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
| Smart Event | • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection |
| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login) |
| Alarm Linkage | • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| DEEP LEARNING FUNCTION | |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§ |
| INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB** |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| GENERAL | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Material | Metal |
| Net Weight | 0.48 Kg |
| Power Supply | 12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 12.5 W |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 4.4 × 4.4 × 3.3 in (111 × 111 × 83.7 mm) |
