IGS-5225-4UP1T2S-12V – Industrial L2+ 4-Port 10/100/1000T 802.3bt PoE + 1-Port 10/100/1000T + 2-Port 1G/2.5G SFP Managed Ethernet Switch w/12V Booster

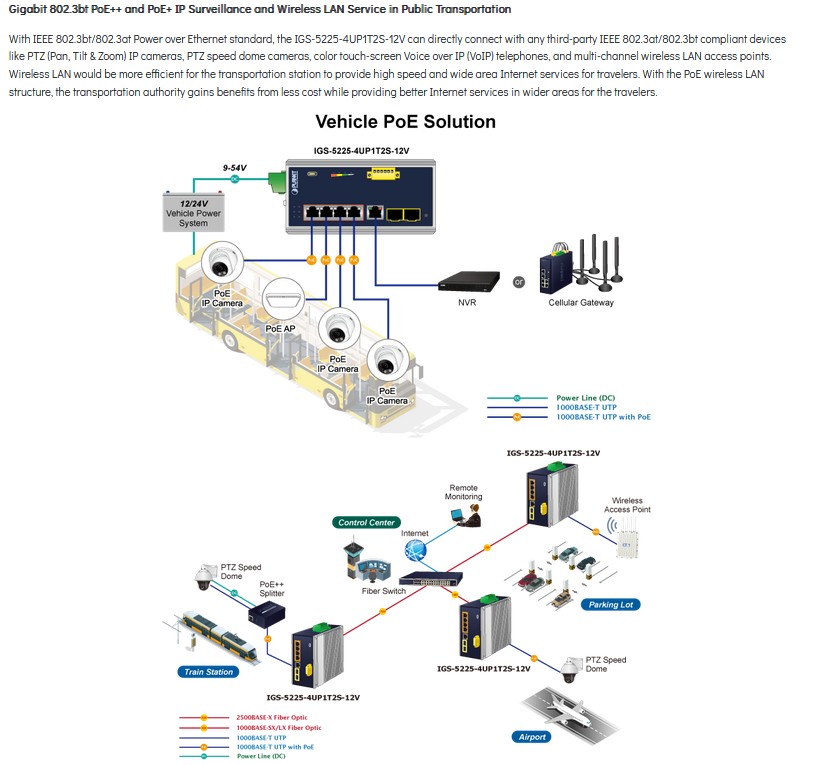

The IGS-5225-4UP1T2S-12V adopts DC 9~48V power boost technology to solve power source issue but does not require special power supplies. It supports rich PoE operation modes including 95-watt 802.3bt type-4 PoE++ ports, 95-watt legacy mode and force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field. With a total power budget of up to 360 watts with dual power input for different kinds of PoE applications, it is designed to efficiently handle power distribution for a versatile array of connected devices which meet the Environmental, Social, and Governance (ESG) principles. Leveraging cutting-edge IP-based technology, PLANET has transformed conventional Power Over Ethernet (PoE) into genuine network devices that align with sustainable and responsible business practices.
| Hardware Specifications | |
|---|---|
| Copper Ports | 5 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | 2 100/1000/2500BASE-X mini-GBIC SFP ports (Port 6 and Port 7) |
| Console | 1 x USB Type C serial port (115200, 8, N, 1) |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Enclosure | IP30 aluminum case |
| Installation | DIN-rail kit and wall-mount kit |
| Connector | Removable 4-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for Power 2 Removable 2-pin terminal block for fault alarm interface Removable 6-pin terminal block for DI/DO interface Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
| Alarm | One relay output for power failure. Alarm Relay current carry ability: 1A @ DC 24V |
| DI/DO | 2 Digital Input (DI): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input Load to 24V DC, 10mA max. 2 Digital Output (DO): Open collector to 24V DC, 100mA max. |
| Dimensions (W x D x H) | 76 x 135x 152 mm |
| Weight | 1400g |
| Power Requirements | Dual 9~54V DC |
| Power Consumption | Max. 7.6 watts/25.9BTU@54V DC input (System on) Max. 367.6 watts/1253.5BTU@54V DC input (Full loading with 802.3bt PoE++) |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| LED Indicator | System: Power 1 (Green) Power 2 (Green) Alarm (Red) Ring (Green) R.O. (Ring Owner) (Green) DIDO (Red) 10/100/1000T RJ45 Ports: 1000Mbps LNK/ACT Green) 10/100Mbps LNK/ACT (Amber) 10/100/1000T RJ45 PoE++ Ports: 802.3bt PoE++-in-use x 1 (Green) 802.3at PoE-in-use x 1 (Amber) 100/1G/2.5GBASE-X SFP Interface: 1G/2.5G LNK/ACT (Green) 100 LNK/ACT (Amber) PoE Usage: 90W, 180W, 270W, 360W (Amber) |
| Switching Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 20Gbps/non-blocking |
| Throughput (packet per second) | 14.8Mpps@ 64Bytes packet |
| Address Table | 8K entries, automatic source address learning and aging |
| Shared Data Buffer | 4Mbits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 9Kbytes |
| Power Over Ethernet | |
| PoE Standard | IEEE 802.3bt PoE++ PSE Backward compatible with IEEE 802.3at PoE PSE |
| PoE Power Supply Type | 802.3BT End-span Mid-span |
| PoE Power Output | Per port 54V DC 802.3bt mode, Ports 1 to 4: maximum 95 watts End-span mode: maximum 36 watts Mid-span mode: maximum 36 watts |
| Power Pin Assignment | 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) |
| PoE Power Budget | Single power <=24V DC input: 90W maximum (depending on power input) Single power 24V~48V DC input: 180W maximum (depending on power input) Single power >=48V DC input: 240W maximum (depending on power input) Dual power <=24V DC input: 120W maximum (depending on power input) Dual power 24V~48V DC input: 240W maximum (depending on power input) Dual power >=48V DC input: 360W maximum (depending on power input) ※Dual power input must be the same as DC voltage, like dual 54V. |
| Number of 95W 802.3bt Type-4 PDs | 3 |
| Number of 60W 802.3bt Type-3 PDs | 4 |
| Number of 802.3at PDs | 4 |
| PoE Management Functions | |
| PoE System Management | PoE Port status monitoring Total PoE power budget control PoE usage threshold and temperature threshold |
| Enhanced PoE Mode | Standard/Legacy/Force |
| PoE Device Live Detection | Per port remote PD IP address 4 actions None PD reboot PR reboot and alarm Alarm |
| PoE Power Recycling | Daily or predefined schedule |
| PoE Schedule | 4 schedule profiles |
| PoE Extend Mode | Remote power feeding up to 100m in standard mode and 250m in extend mode |
| Layer 3 Function | |
| IP Interfaces | Max. 8 VLAN interfaces |
| Routing Table | Max. 32 routing entries |
| Routing Protocols | IPv4 software static routing IPv6 software static routing |
| Layer 2 Function | |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Port link capability control |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring | TX/RX/both Many-to-1 monitor RMirror – Remote Switched Port Analyzer (Cisco RSPAN) Supports up to 5 sessions |
| VLAN | IEEE 802.1Q tag-based VLAN IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) GVRP (GARP VLAN Registration Protocol) Up to 4K VLAN groups, out of 4096 VLAN IDs |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol BPDU Guard |
| Link Aggregation | IEEE 802.3ad LACP/static trunk Supports 3 trunk groups with 7 ports per trunk group |
| IGMP Snooping | IPv4 IGMP (v1/v2/V3) snooping IPv4 IGMP querier mode support Up to 255 multicast groups |
| MLD Snooping | IPv6 MLD (v1/v2) snooping IPv6 MLD querier mode support Up to 255 multicast groups |
| Ring | Supports ERPS, and complies with ITU-T G.8032 Recovery time < 10ms @ 3 nodes Recovery time <50ms @ 16 nodes Supports major ring and sub-ring. |
| Synchronization | IEEE 1588v2 PTP (Precision Time Protocol) Peer-to-peer transparent clock End-to-end transparent clock |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching Port number 802.1p priority 802.1Q VLAN tag DSCP/TOS field in IP packet |
| Bandwidth Control | Per port bandwidth control Ingress: 100Kb~3276Mbps Egress: 100Kb~3281Mbps |
| Storm Control | Unicast/Multicast/Broadcast |
| Security Functions | |
| Access Control List | IP-based ACL/MAC-based ACL ACL based on: MAC Address IP Address Ethertype Protocol Type VLAN ID DSCP 802.1p Priority Up to 512 entries |
| Security | Port security IP source guard, up to 512 entries Dynamic ARP inspection, up to 1K entries Command line authority control based on user level Static MAC address, up to 64 entries |
| AAA | RADIUS client TACACS+ client |
| Network Access Control | IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication |
| Management | |
| Basic Management Interfaces | Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces | SSHv2,TLSv1.2, SNMP v3 |
| System Management | Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote syslog System log LLDP protocol NTP PLANET Smart Discovery Utility PLANET NMS PLANET NMSViewerPro App PLANET CloudViewerPro App |
| Event Management | Remote syslog System log SMTP |
| ONVIF | ONVIF device discovery ONVIF device monitoring Floor Map |
| SNMP MIBs | RFC-1213 MIB-II IF-MIB RFC-1493 Bridge MIB RFC-1643 Ethernet MIB RFC-2863 Interface MIB RFC-2665 Ether-Like MIB RFC-2819 RMON MIB (Group 1, 2, 3 and 9) RFC-2737 Entity MIB RFC-2618 RADIUS Client MIB RFC-2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB Power over Ethernet MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab Gigabit 1000T IEEE 802.3z Gigabit SX/LX IEEE 802.3bz 2.5GBASE-X IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus IEEE 802.3ah OAM IEEE 802.1ag Connectivity Fault Management(CFM) IEEE 1588 PTPv2 RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 793 TCP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 ITU-T G.8032 ERPS Ring ITU-T Y.1731 Performance Monitoring |
| Environment | |
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
