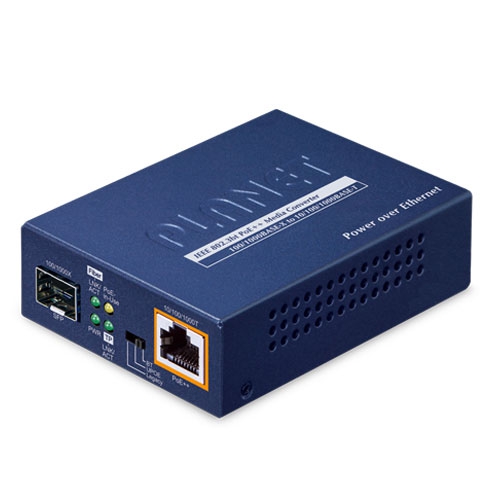

GUP-805A-95W – Planet 100/1000BASE-X SFP to 10/100/1000BASE-T 802.3bt PoE++ Media Converter (95 Watts)

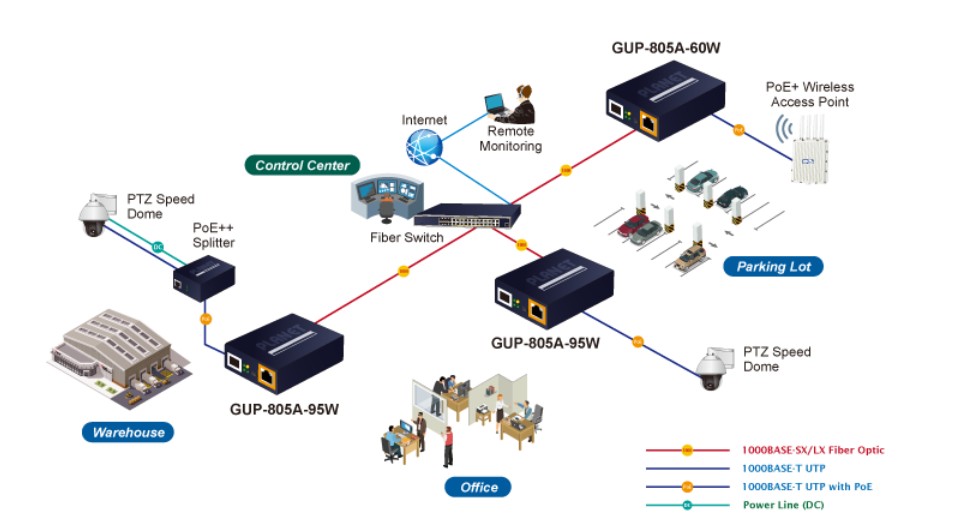

As PLANET GUP-805A-95W adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as:
- PoE PTZ speed dome cameras
- Network devices
- Thin clients
- AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
- Remote digital signage displays
- PoE lightings
Note: SFP Module sold separately
| Interface | |
|---|---|
| Copper Port | 10/100/1000BASE-T Ethernet RJ45 interface Auto-negotiation, auto MDI/MDI-X with PoE injector function |
| SFP Interface | 100/1000BASE-X SFP interface |
| Fiber Mode | May vary on SFP Module |
| Fiber Port Type (connector) | SFP, LC type |
| Fiber Maximum Distance | May vary on SFP Module |
| Power Over Ethernet | |
| PoE Output | IEEE 802.3af Power over Ethernet PSE IEEE 802.3at Power over Ethernet Plus PSE IEEE 802.3bt Power over Ethernet Plus Plus PSE |
| Power Output | PoE 52-55V DC, 95 watts |
| PoE Power Budget | 95 watts |
| PoE Power Supply Type | End-span + Mid-span |
| Power Pin Assignment | 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) |
| Hardware Specifications | |
| Enclosure | Metal case |
| Dimensions (W x D x H) | 94 x 70 x 26 mm |
| Weight | 144g |
| LED | System: PWR (Green) Fiber 100/1000BASE-X: LNK/ACT(Green) TP 10/100/1000BASE-T: LNK / ACT(Green) PoE: Power-in-use (Amber) |
| DIP Switch | PoE power feeding options (BT/UPOE/Legacy) selection |
| Power Supply | DC 52V~55V Power Socket, external AC-to-DC adapter |
| Installation | Wall-mount or DIN-rail installation(Optional) |
| Layer 2 Features | |
| Switch Architecture | Store-and-Forward |
| Forwarding Rate | Non-blocking full wire-speed forwarding rate |
| Flow Control | Back pressure for half duplex mode IEEE 802.3x pause frame for full duplex mode |
| Maximum Frame Size | 9K |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Protocols and Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab Gigabit Ethernet over TP IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
| Cables | TP：Cat 3/4/5/5e/6 UTP cable Fiber： Multi-mode: 50/125m or 62.5/125μm optic fiber Single-mode： 9/125μm optic fiber |
| Environment | |
| Temperature | Operating: 0 ~ 50 degrees C Storage: -10 ~ 70 degrees C |
| Humidity | 5% ~ 95% non-condensing |
